Description

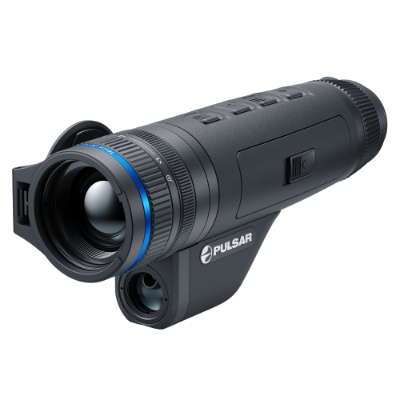

The Pulsar Telos LRF XQ35 thermal monocular offers robust thermal capabilities at an accessible price point. Featuring a NETD <25mK and a 384×288 pixel at 17µm sensor, it captures even faint heat signatures, resulting in highly detailed images with excellent contrast for seamless object detection in challenging conditions like heavy rain or dense fog. With a 1300 meter detection range, it’s ideal for mid to long-range observations, suitable for various applications such as wildlife observation, hunting, security, and search and rescue operations.
Innovative features anticipate the future of thermal imaging with the Telos LRF XQ35. A zoom control ring on the front allows effortless magnification adjustments, while a built-in laser rangefinder accurately detects objects up to 1000 meters away, providing precise distance measurements for enhanced accuracy. User experience is prioritized with a non-slip rubber housing for improved grip and a comfortable carry bag for easy transportation.
| Model | LRF XQ35 |
| SKU | 77512 |
| Microbolometer | |
| Type | uncooled |
| Resolution, Pixels | 384×288 |
| Pixel Pitch, µm | 17 |
| NETD, mK | < 25 |
| Frame Rate, Hz | 50 |
| Optical Characteristics | |
| Optical Magnification, x | 3 |
| Smooth Digital Zoom | 3 – 12 |
| Digital Zoom, x | x1 – x4 |
| Lens Focus, mm | 35 |
| Relative Aperture, D/f’ | 1.0 |
| Minimum Focus Distance, m/y | 5 / 5.5 |
| Exit Pupil Diameter, mm/inch | 4 / 0.16 |
| Angular Field of View (Horizontal x Vertical), degree | 10.7×8.0 |
| Linear Field of View, m at 100 m | 18.7 |
| Eyepiece Focus Range, Dioptre | +4 / -5 |
| Detection Distance for Deer-Sized Objects, m/y | 1300 / 1422 |
| Display | |
| Type | AMOLED |
| Resolution, Pixels | 1024×768 |
| Operational Characteristics | |
| Power Supply, V | 3 – 4.2 |
| Battery Type/Capacity/Nominal Output Voltage | LPS7i Li-ion Battery Pack / 6400 mAh / DC 3.7 V |
| External Power Supply | 5 V, 9 V (USB Type-C) |
| Battery Run Time at t=22°C, hours* | 8.5 |
| Degree of Protection, IP Code (IEC60529) | IPX7 |
| Operating Temperature Range, °C / °F | -25 … +40 / -13 – +104 |
| Dimensions, mm/inch | 224x66x87 / 8.82×2.6×3.4 |
| Weight (with battery), kg/oz | 0.63 / 35.3 |
| Video Recorder | |
| Photo/Video Resolution, Pixels | 1024×768 |
| Video/Photo Format | .mp4 / .jpg |
| Built-in Memory | 64 GB |
| Wi-Fi Channel** | |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
| Characteristics of the Rangefinder | |
| Wavelength, nm | 905 |
| Measurement Range, m/y*** | 1000/1094 |
| Measurement Accuracy, m | 1
|
* Actual operating time depends on the extent of using Wi-Fi, integrated video recorder and integrated laser rangefinder.
** Reception range may vary depending on various factors: obstacles, other Wi-Fi networks.
*** Depends on the characteristics of the object under observation and environmental conditions.
