Description

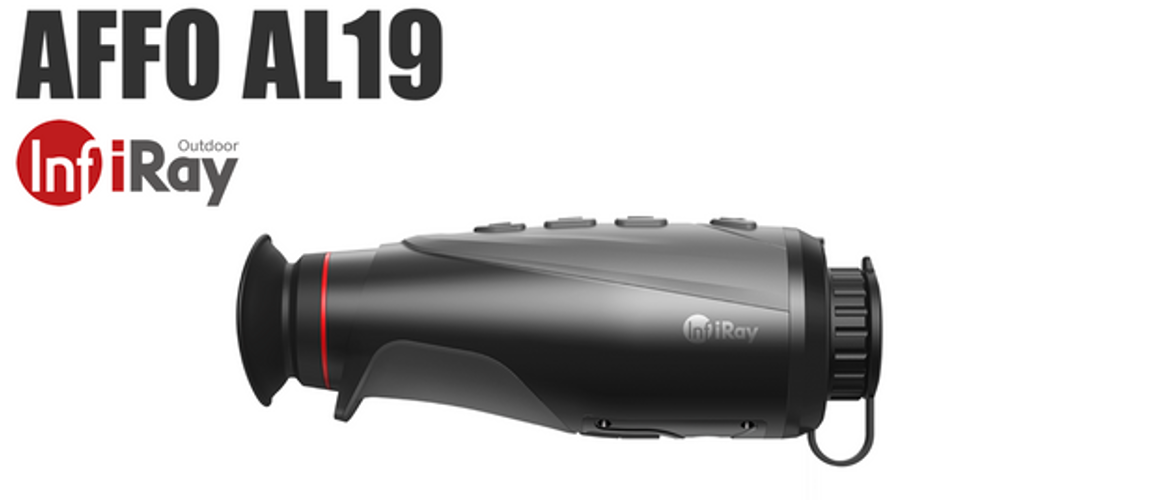

AFFO AL19 – Thermal Imaging Monocular by InfiRay
Introducing the AFFO Series of Thermal Imaging Monoculars – the newest addition to InfiRay’s Entry Level product range. This monocular features a stylish design and compact size. Equipped with a self-developed 12μm thermal sensor, the AFFO range of products delivers crisp thermal images, and comes with a built-in storage capacity for easy photo-taking and video recording. Experience the power of thermal imaging in the palm of your hand with the AFFO Series.
AL19 (384×288 thermal sensor, 12um, NETD <25mK)
| MODEL | AL19 |
| Thermal Sensor | 384 x 288 |
| Objective lens | 19mm |
| Magnification, x | 2.0x (4x zoom) |
| Field of view (Horizontal), degrees | 13.8° |
| Detection range (person), m | 980 |
| Sensor (Thermal) | |
| Type | uncooled Vox |
| Resolution, pixels | 384 x 288 |
| Pixel Pitch | 12 um |
| NETD | <40 mK |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | 19mm |
| Magnification, x | 2.0x (4x zoom) |
| Field of view (Horiz. x Vert.), degrees | 13.8° x 8.7° |
| Display | |
| Resolution, pixels | 640 x 400 AMOLED |
| Thermal Palettes | White Hot, Black Hot, Red Hot, Pseudo Colour, Target Highlight |
| Range Performance | |
| Detection range (person), m | 980 |
| Laser Rangefinder | |
| Safety class for laser equipment according to IEC 60825-1:2014 | – |
| Wavelength, nm | – |
| Max. measuring range, m | – |
| Measurement accuracy, m | – |
| Min. Measuring Range, m | – |
| Reticle | n/a |
| Picture in Picture
|
– |
| Number of preloaded reticles | – |
| Number of Zero Profiles available | – |
| Bluetooth Connection | – |
| Video Recorder | Yes (8Gb storage) |
| Environmental Characteristics | |
| Degree of protection, IP code (IEC60529) | IP67 |
| Power Supply | |
| Output voltage, V | – |
| Battery type | 3.6Ah Li-ion (internal) |
| Operating time on battery pack (at t=22°C), h * | 7.5 |
| External power supply, V | 5V (USB Type-C) |
| Connections and Compatibilities | |
| Max. recoil power on firearm | – |
| Mounting brackets on firearm | – |
| Weight & Size | |
| Dimensions, mm | 169 x 60 x 60 |
| Weight, kg | 0.35 |
| Warranty | 3 years |
| Trade Data | |
| SKU (Model #) | AL19 |
