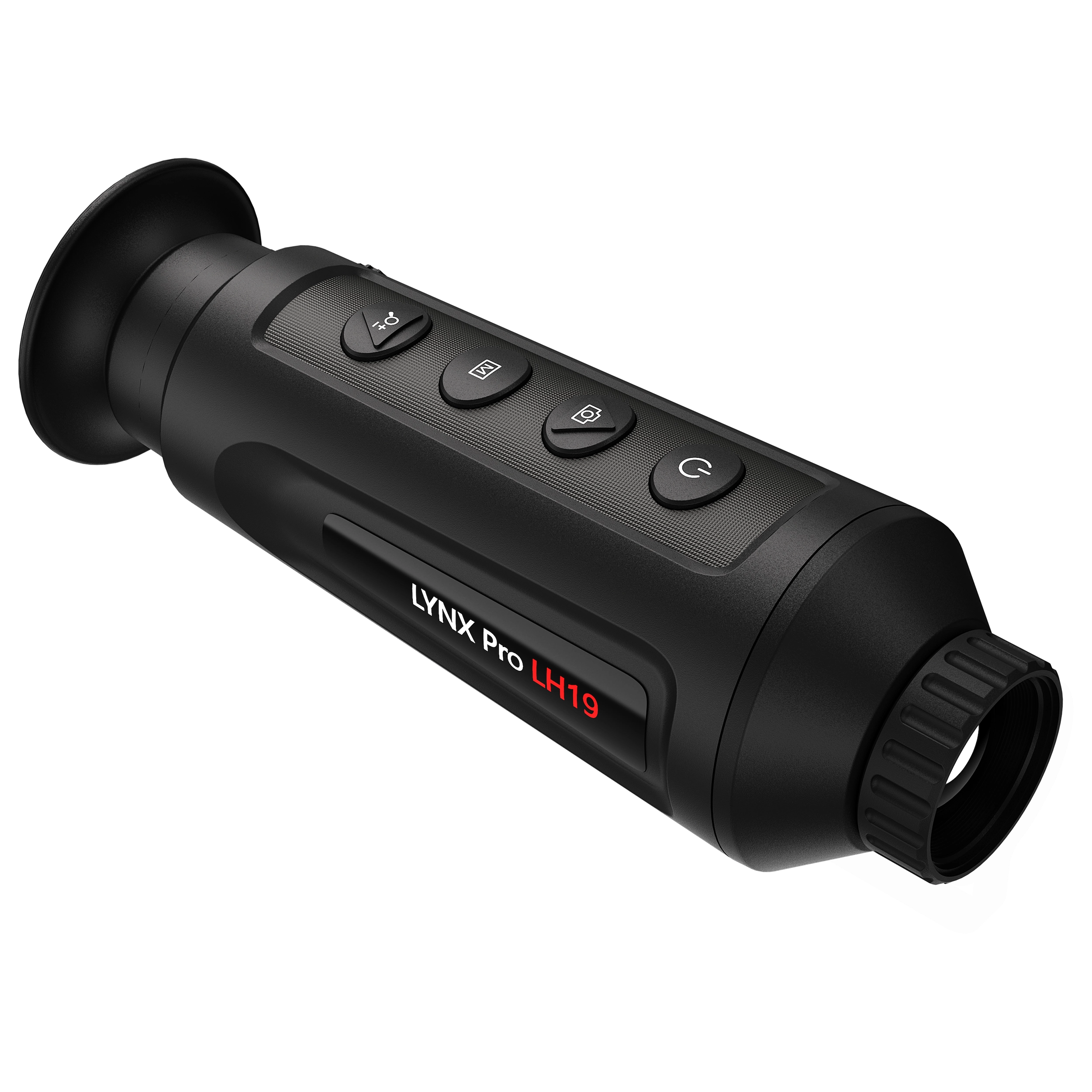

The HIKMICRO Lynx Pro LH19 handheld thermal monocular camera is equipped with a 384 × 288 infrared detector and a 1280 × 960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.
900M DETECTION DISTANCE
The HIKMICRO Lynx LH19 is designed for spotting targets at mid-long range, with a 900m detection distance.
BANG FOR YOUR BUCK
Australia’s best value mid-range monocular – offering clear images for mid-long range detection.
MANUALLY ADJUSTABLE LENS
Ensure you get the clearest image every time with a manually adjustable objective lens, allowing you full control over sharpness and clarity.
| Specification | Details |
|---|---|
| Aperture | F1.0 |
| Battery Capacity Display | Yes |
| Battery Operating Time | 7.5 hours continuous running with CVBS and WiFI hot spot function off (@25ºC), 6 hours continuous running with CVBS and WiFi hot spot function on (@25ºC) |
| Battery Type | Lithium Battery |
| Capture Snapshot | Yes |
| Detection Range | 897m |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Dimension | 171mm x 61mm x57mm (6.73″ x 2.4″ x 2.24mm”) |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Field of View | 13.8º x 10.4º (H x V) |
| Frame Frequency | 50Hz |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Lens (Focal Length) | 19mm |
| Magnification | 1.86 to 14.88 |
| Max. Resolution | 384 x 288 |
| Monitor | 0.4 inch, LCOS, 1280 x 9630 |
| NETD | Less than 35mk (@25ºC), F#=1.0 |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Pixel Interval | 12um |
| Power | 5 VDC/2 A, 1.5 W, Type-C Interface |
