Description

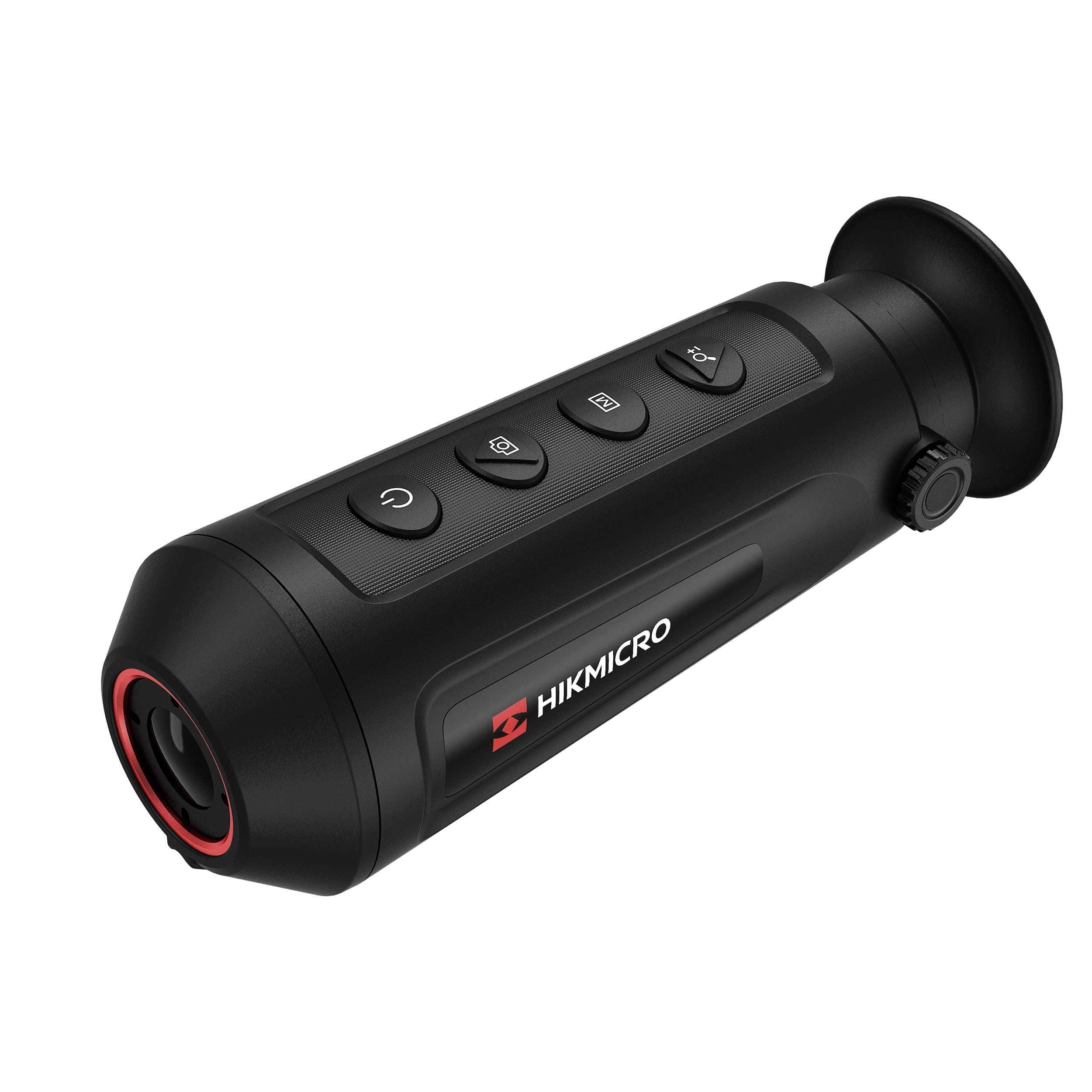

HIKMICRO LYNX S LE10S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, WiFi hot spot and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, law enforcement and search and rescue.
COMPACT & LIGHT WEIGHT
The Lynx S LE10S fits in to your pocket, weighing only 260 grams, making it ideal for on-the-go activity.
UNBEATABLE VALUE
Packed with premium-grade features, the LE10S represents some of the best value on the market.
MID RANGE TRACKING
The Lynx S LE10S is ideal for short-mid range detection, helping pick up your target quickly.
| Thermal Module | |
|---|---|
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 35 mK (@25°C, F# = 1.0) |
| Lens (Focal Length) | 9.7 mm, F1.0 |
| Focus Mode | Focus Free |
| Detection Range | 500 m |
| Min. Focusing Distance | 4 m |
| Magnification | 1.5× to 12.0× (8×) |
| Field of View(H × V), | 18.0° × 13.6° / 31.7 m × 23.8 m |
| Degrees / m @100 m | |
| Image Display | |
| Display | 800 × 600, 0.32-inch, OLED |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 20 mm |
| Eye Relief | 6 mm |
| Diopter (Range) | -5D to +4D |
