Description

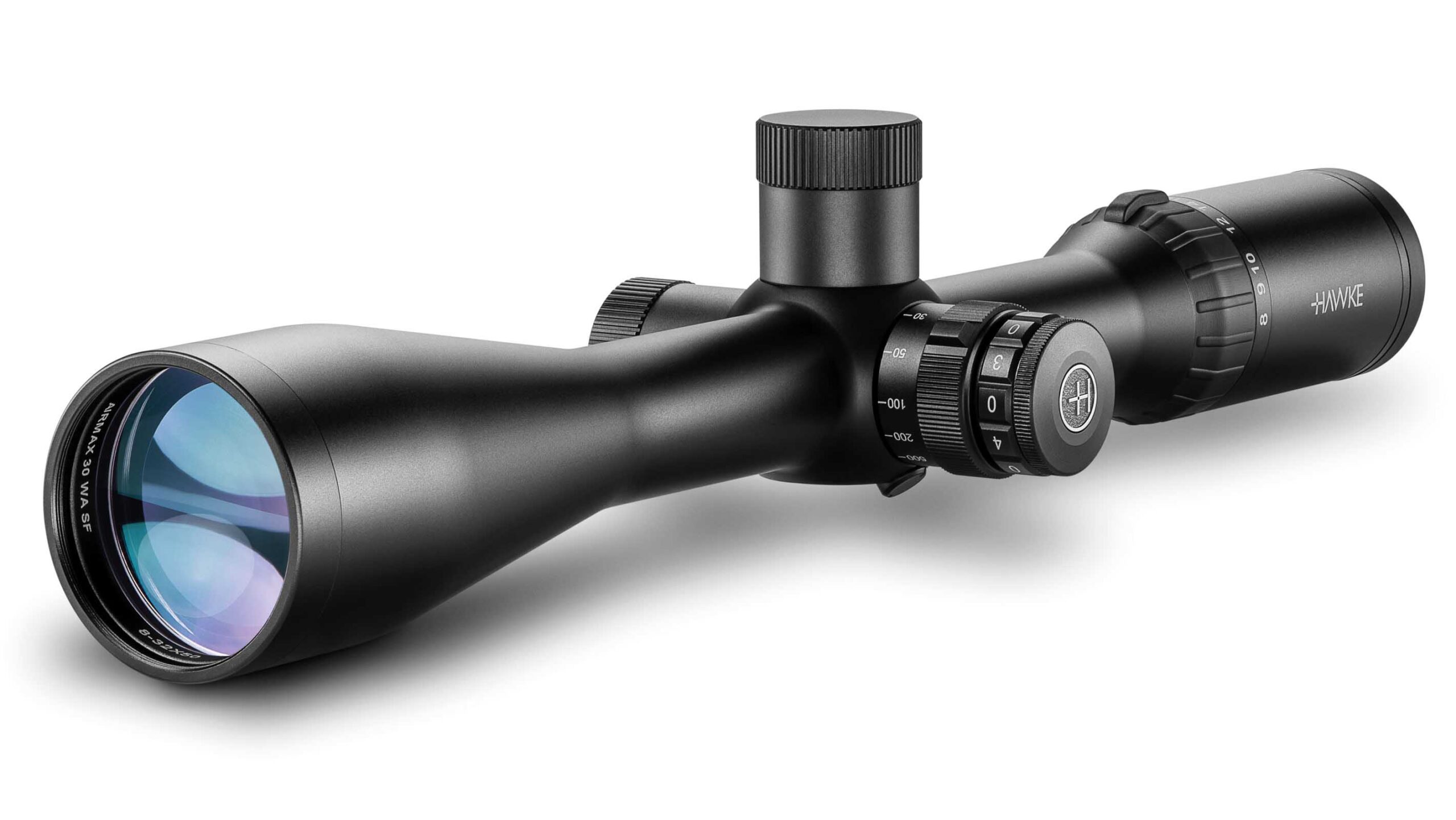

Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Capped Target Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Side Focus
- Illumination
- 16 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- AMX reticle designed for airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
AMX Reticle
Both the AMX and AMX IR glass-etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Scope Tube
30mm
Optical System
System H2
Magnification
8 – 32x
Objective Lens
50mm
Reticle
AMX IR
Illumination
6 Levels (Red)
Illumination Control
Stepped Rheostat with Off Positions In-between
Parallax
Side Focus
Focal Plane
SFP (Second Focal Plane)
Field of View
16.1 – 4.0ft @100yds
5.4 – 1.3m @100m
Field of View (°)
3.1 – 0.8
Eye Relief
4in
102mm
PX/Focus (Error free from)
10yds – ∞
9m – ∞
Exit Pupil
0.25 – 0.06″
6.3 – 1.6mm
Click Value
1⁄ 10MRAD
Elevation Turret Clicks (max)
16 MRAD
Windage Turret Clicks (max)
16 MRAD
Ocular Type
Fast Focus
Power Selector
Rubber Coated Posi-Grip
Lens Coating
Fully Multi-Coated – 16 Layers
Length
15.3in
388mm
Weight
27.5oz
780g
Turret Type (Elevation)
Target. Capped. Resettable
Turret Type (Windage)
Target. Capped. Resettable
