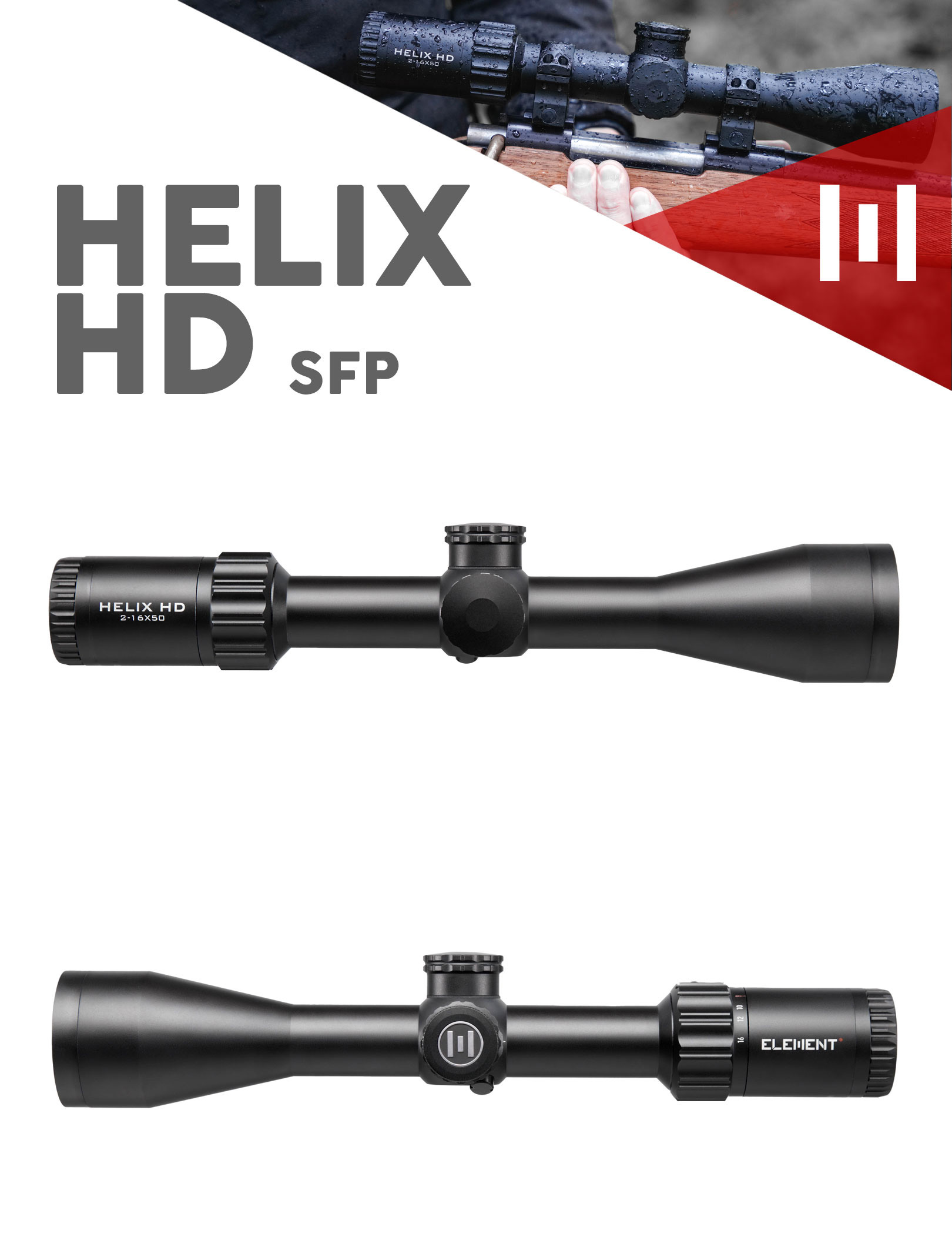

The Helix HD model steps it up another notch with HD Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. And, they’ve capped both the windage and elevation turrets for a more hunter-friendly, compact feel. This is on top of Helix’s core features which include clear glass, smart reticle, innovative design, and a turret system superior to other products in the same price class.
DESCRIPTION
FEATURES
- 30mm Main Body Tube
- 8x Zoom Optical System
- Compact, Lightweight Design
- Second Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10m-Infinity
- Fully Multi-Coated Lenses with HD Glass
- Capped, Resettable Turrets
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth, ‘Cheat Sheet’ Stickers & Clear Lens Caps Included
SPECS
MAGNIFICATION RANGE
2-16x
TUBE DIAMETER
30mm
OBJECTIVE LENS DIAMETER
50mm
EXIT PUPIL
8.5-3.1mm
EYE RELIEF
101.6mm (4″)
FIELD OF VIEW
@100m:
20.2 – 2.51m
CLICK VALUE
1/10 MRAD
(6 MRAD / REV)
ELEVATION ADJ. RANGE
100 MOA
29 MRAD
WINDAGE ADJ. RANGE
45 MOA
13 MRAD
MINIMUM PARALLAX
10 YDS
10 METERS
LENGTH
13.39 Inches
340 mm
WEIGHT
25.6oz
728gr
